How To Install Gator Base
Our crew digs a foundation to a depth of 6”. Foundations that use crushed stone have an excavated average depth of 6-12”. Since a single layer of Gator Base replaces 6” of stone our foundation is at the maximum recommended depth.
Levelling & Compacting Sub Grade
We compact the base layer of soil and slope it away from any structures like a house. The area needs to be as smooth as possible and relative to the final grade and slope of the area.
Adding Geofabric & Levelling Bedding Sand
We lay down non-woven Gator Fabric and cover the excavated and tamped area. Then we add a ¾” layer of sand and level it using a float.
Installation of Gator Base
In a staggered pattern, we lay out the Gator Base over the desired project area. Using the tongue and groove system the base is secure and locked into place. The surface area of the Gator Base ends up being 6” wider than the final paved area. Any curved and excess Gator Base can be trimmed using a utility knife.
Lay Pavers &
Install Gator Edging
We lay the pavers on the Gator Base foundation in the pattern the customer wants. Then we install Gator Edge with butterflying anchor screws. We securely fasten the Gator Base to the ground maximizing lateral support. This prevents sunken pavers and keeps your patio looking good for years to come!
Gator Maxx Polymeric Sand
Every project uses polymeric sand to prevent weeds from growing between the pavers. Gator Base has developed a new product that is technologically advanced and stronger than other products. We sweep the sand in the joints of the interlock then use a machine to level and compact the joints.
Hardening Polymeric Sand
The last step is to mist the polymeric sand. By adding water it triggers a chemical reaction hardening the paver joints as it dries. Your project is ready to enjoy.
Gator Base Installation Pictures
Gator Base Specification
Equivalent to 288 lbs of crushed stone landscape foundation
Replaces up to 6-inches of compacted crushed stone foundation
Evacuates water and helps with drainage from engineered grooves on the tile
Manufactured from lightweight high-density polypropylene
Eco-friendly and 100% recyclable
Extremely durable and will not degrade under the ground
Designed with a long-n-go tongue and groove system for extra strength
Gator Base insulation has an R-value of 3.6 (per inch thickness).
Significantly reduces the thaw/freeze cycles of regular stone foundations
Gator Base Is Engineered To:
Gator Base is made to divert water away from the interlock. Its has a 1 degree slope draining water through holes and evacuation channels.
Gator Base tiles increase surface area and help distribute loads more evenly eliminating uneven loads from heavy foot traffic
Thaw Freeze Protection
Gator Base has patented tongue and groove system the locks the foundation in place. It’s flexible enough to expand and contract better than traditional foundations.
Gator Base Applications
Areas With Limited Access
Areas with large slopes
Time Constrained Projects
Easy to use, install & transport
Heavy machinery not required
Material storage prohibited

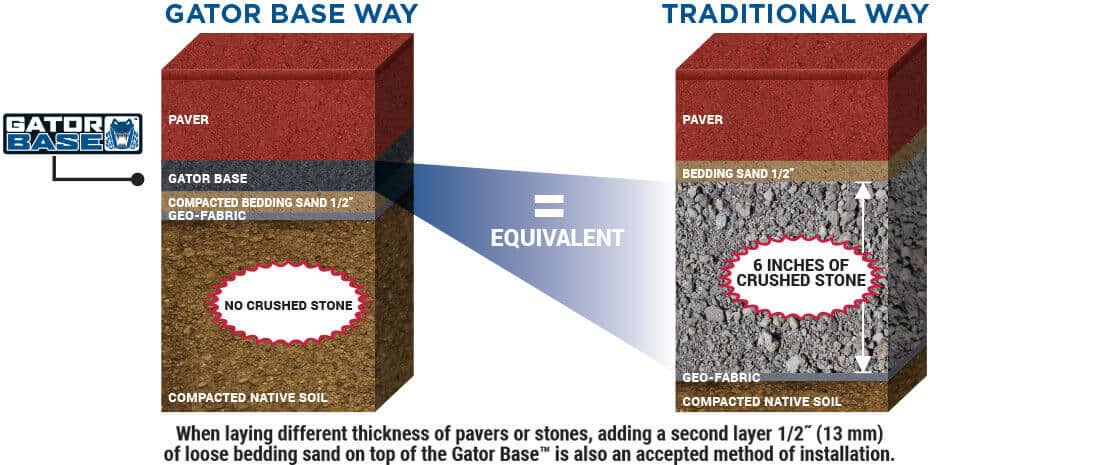

Replaces 6″ of Crushed Stone
Imagine if there were a product that was easier to install, could be installed faster and performed as good as aggregate? Gator Base is a product that A&Z Interlock is now installing for Ottawa landscape renovations. Our projects are backed with a solid warranty protecting against defects from products and installation.
Gator Base Is Eco-Friendly
- Requires less aggregate being picked up and dropped off to the job site
- Reduces CO2 by completing more labour manually
- 100% Recyclable product
- Water permeable foundation, good for local ecology
- Reduces landfill disposal by 50 cubic feet (10×10 area)
Gator Maxx Polymeric Sands
They Made It Stronger!
Gator Base Polymeric sand helps prevent damage from weeds from growing between pavers Ottawa, damage from insects and erosion. Gator Dust is a mix of polymeric binders and stone dust. Once set a chemical reaction takes place making it very firm, locking the joints while remaining slightly flexible. Gator Dust is technologically advanced in durability and quality. Gator Dust is available in Sahara Beige and Stone Grey. Gator Base has a 15 year limited warranty so you can relax know you’re covered.
